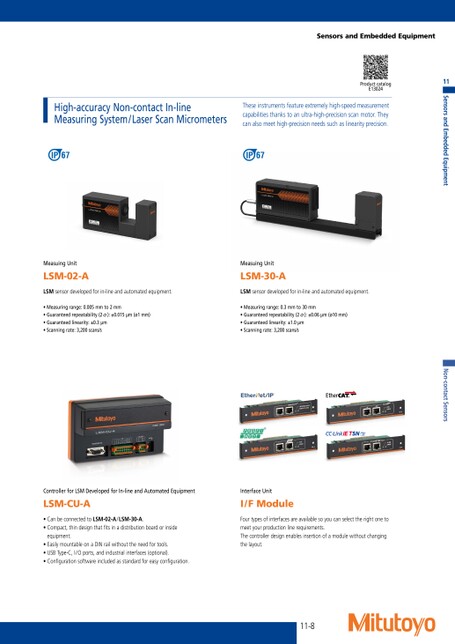

High-accuracyNon-contactIn-lineMeasuringSystem/LaserScanMicrometersTheseinstrumentsfeatureextremelyhigh-speedmeasurementcapabilitiesthankstoanultra-high-precisionscanmotor.Theycanalsomeethigh-precisionneedssuchaslinearityprecision.ProductcatalogE13024Non-contactSensorsMeasuingUnitLSM-02-AMeasuingUnitLSM-30-ALSMsensordevelopedforin-lineandautomatedequipment.LSMsensordevelopedforin-lineandautomatedequipment.•Measuringrange:0.005mmto2mm•Guaranteedrepeatability(2σ):±0.015µm(ø1mm)•Guaranteedlinearity:±0.3µm•Scanningrate:3,200scans/s•Measuringrange:0.3mmto30mm•Guaranteedrepeatability(2σ):±0.06µm(ø10mm)•Guaranteedlinearity:±1.0µm•Scanningrate:3,200scans/sControllerforLSMDevelopedforIn-lineandAutomatedEquipmentLSM-CU-AInterfaceUnitI/FModule•CanbeconnectedtoLSM-02-A/LSM-30-A.•Compact,thindesignthatfitsinadistributionboardorinsideequipment.•EasilymountableonaDINrailwithouttheneedfortools.•USBType-C,I/Oports,andindustrialinterfaces(optional).•Configurationsoftwareincludedasstandardforeasyconfiguration.Fourtypesofinterfacesareavailablesoyoucanselecttherightonetomeetyourproductionlinerequirements.Thecontrollerdesignenablesinsertionofamodulewithoutchangingthelayout.11-8
| <
|
> |
>>
