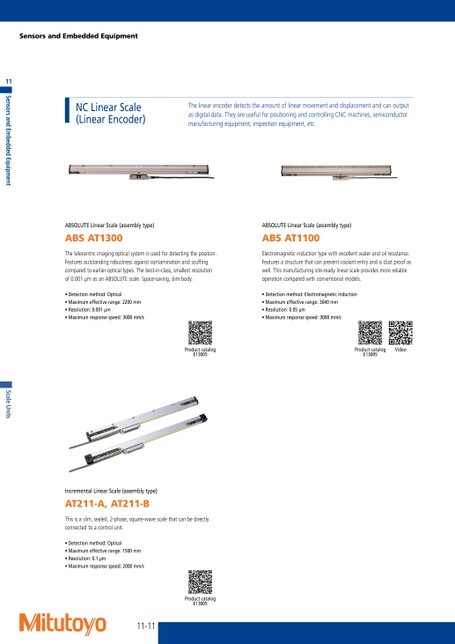

NCLinearScale(LinearEncoder)Thelinearencoderdetectstheamountoflinearmovementanddisplacementandcanoutputasdigitaldata.TheyareusefulforpositioningandcontrollingCNCmachines,semiconductormanufacturingequipment,inspectionequipment,etc.ABSOLUTELinearScale(assemblytype)ABSAT1300ABSOLUTELinearScale(assemblytype)ABSAT1100Thetelecentricimagingopticalsystemisusedfordetectingtheposition.Featuresoutstandingrobustnessagainstcontaminationandscuffingcomparedtoearlieropticaltypes.Thebest-in-class,smallestresolutionof0.001µmasanABSOLUTEscale.Space-saving,slimbody.Electromagneticinductiontypewithexcellentwaterandoilresistance.Featuresastructurethatcanpreventcoolantentryandisdustproofaswell.Thismanufacturingsite-readylinearscaleprovidesmorereliableoperationcomparedwithconventionalmodels.•Detectionmethod:Optical•Maximumeffectiverange:2200mm•Resolution:0.001µm•Maximumresponsespeed:3000mm/s•Detectionmethod:Electromagneticinduction•Maximumeffectiverange:3040mm•Resolution:0.05µm•Maximumresponsespeed:3000mm/sProductcatalogE13005ProductcatalogE13005VideoIncrementalLinearScale(assemblytype)AT211-A,AT211-BThisisaslim,sealed,2-phase,square-wavescalethatcanbedirectlyconnectedtoacontrolunit.•Detectionmethod:Optical•Maximumeffectiverange:1500mm•Resolution:0.1µm•Maximumresponsespeed:2000mm/sProductcatalogE1300511-11ScaleUnits
| <
|
> |
>>
